Specification

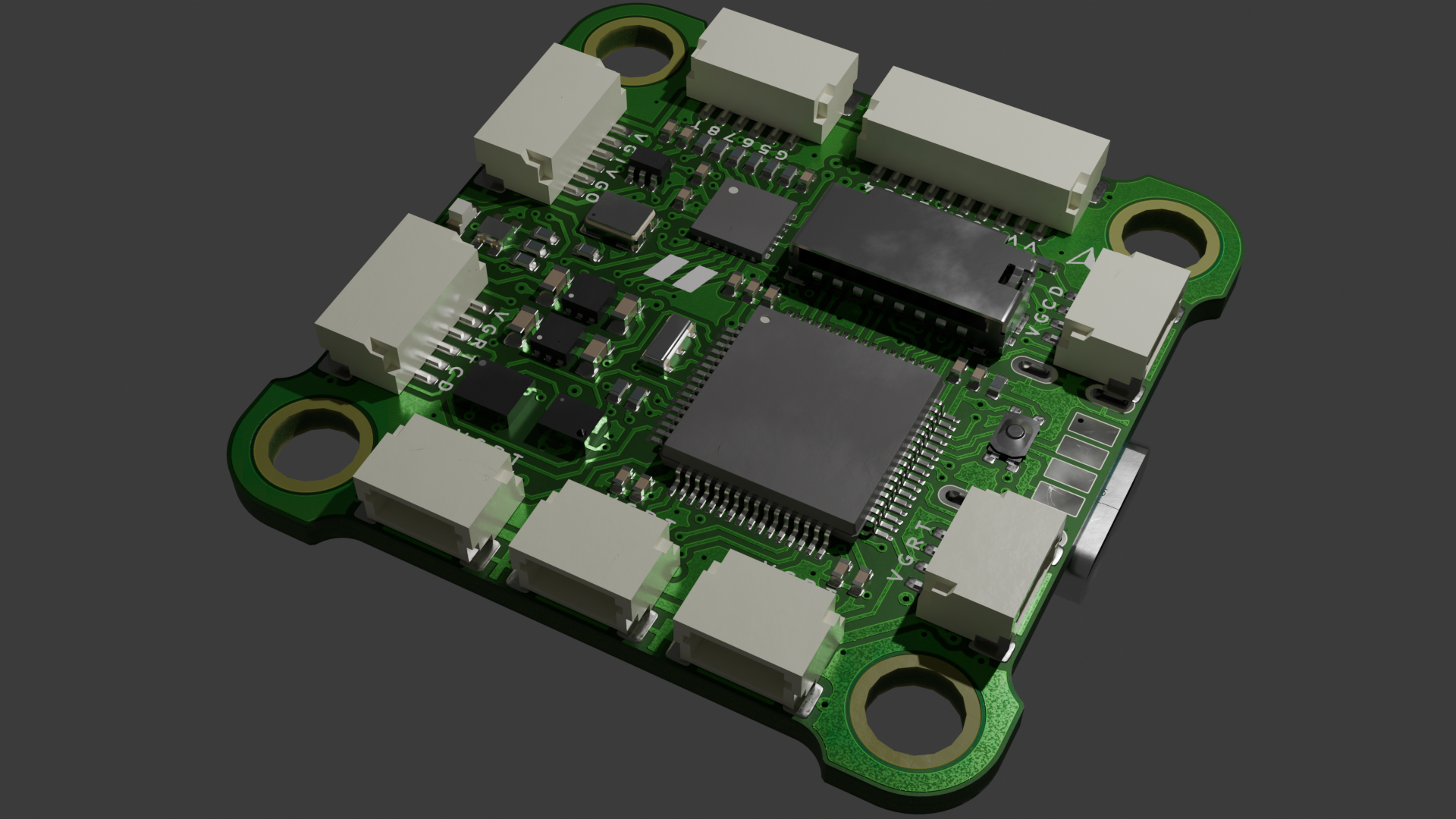

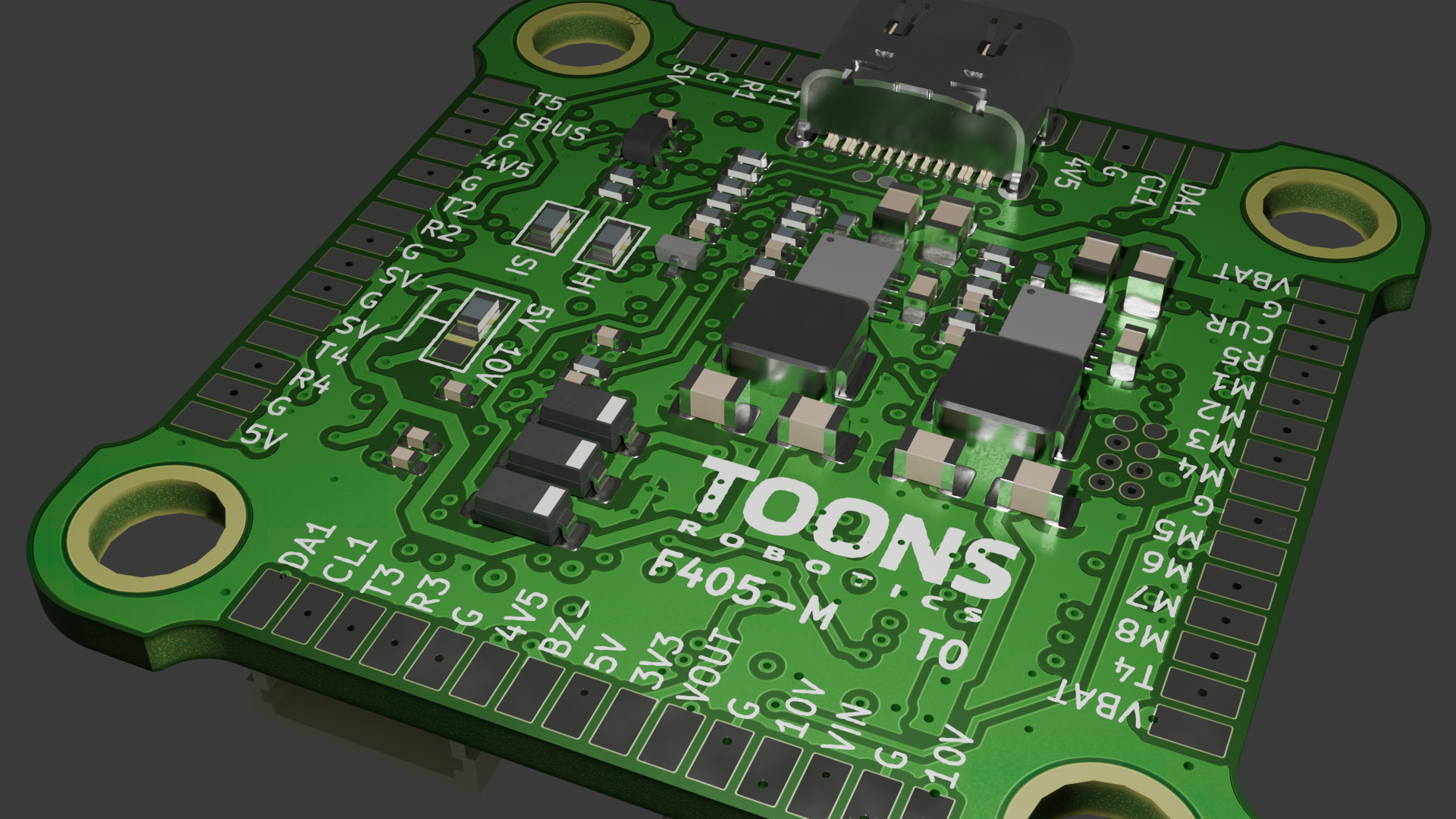

FC F405-M

• MCU: STM32F405
• Integrated BMI270 IMU and DPS310 barometer
• 6 x UART with togglable SBUS inversion
• 9 motor output with SBUS servo output
• Input voltage: 4-8S, 12-35V
• Dual BEC: 5V 2.5A, 10V 2.5A
• Mounting Holes: 30.5 x 30.5 mm
• All IO breakout in both connectors and pads
• Support Betaflight, INAV, and Ardupilot
• Support software emulated analog OSD overlay

ESC 60A-4in1

• Continuous current: 60 Amps
• Burst current: 80 Amps
• Input voltage: 4-8S, 12-35V
• Support HF32 and AM32
• Mounting Holes: 30.5 x 30.5 mm
• Support variable PWM frequency
• Support active breaking
• Support bidirectional DSHOT
• Support sinusoidal startup mode
